Product Name: OHE 32 Series Hydraulic Adapter Sleeves
Product Details

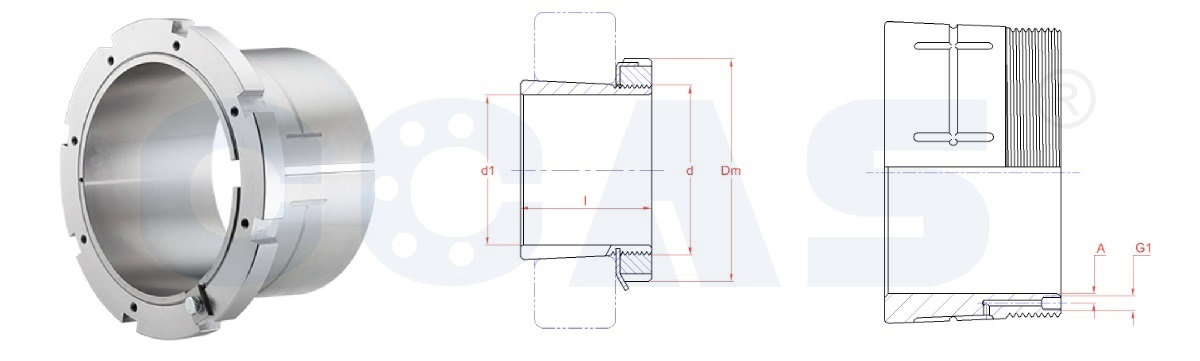

Drawing and Technical Data Sheet of OHE 32 Series Hydraulic Adapter Sleeves
| Adapter Sleeves No. | d1 | d | G | l | Dm | G1 | Lock Nuts + Locking Device | Bearings |
| mm | mm | mm | mm | |||||
| OHE 3260H | 11" | 300 | Tr 300x4 | 240 | 380 | M6x1 | HM 3160 + MS 3160 | 22360K, 23260K |
| OHE 3264H | 11 1/2" | 320 | Tr 320x5 | 258 | 400 | M6x1 | HM 3164 + MS 3164 | 22364K, 23264K |
| OHE 3268H | 12" | 340 | Tr 340x5 | 288 | 440 | M6x1 | HM 3168 + MS 3168-MS 3172 | 22368K, 23268K |
| OHE 3272H | 13" | 360 | Tr 360x5 | 299 | 460 | M6x1 | HM 3172 + MS 3168-MS 3172 | 22372K, 23272K |
| OHE 3276H | 14" | 380 | Tr 380x5 | 310 | 490 | M6x1 | HM 3176 + MS 3176 | 22376K, 23276K |
| OHE 3280H | 15" | 400 | Tr 400x5 | 328 | 520 | M4x0.7 | HM 3180 + MS 3180-MS 3184 | 22380K, 23280K |
| OHE 3284H | 15 3/4" | 420 | Tr 420x5 | 352 | 540 | M6x1 | HM 3184 + MS 3180-MS 3184 | 22384K, 23284K |
| OHE 3288H | 16" | 440 | Tr 440x5 | 361 | 560 | M8x1.25 | HM 3188 + MS 3188-MS 3192 | 22388K, 23288K |
| OHE 3292H | 17" | 460 | Tr 460x5 | 382 | 580 | M8x1.25 | HM 3192 + MS 3188-MS 3192 | 22392K, 23292K |
| OHE 3296H | 18" | 480 | Tr 480x5 | 397 | 620 | M6x1 | HM 3196 + MS 3196 | 22396K, 23296K |
| OHE 32/500H | 18 1/2" | 500 | Tr 500x5 | 428 | 630 | M8x1.25 | HM 31/500 + MS 31/500 | 223/500K, 232/500K |
