Product Name: OHA 32 Series Hydraulic Adapter Sleeves
Product Details

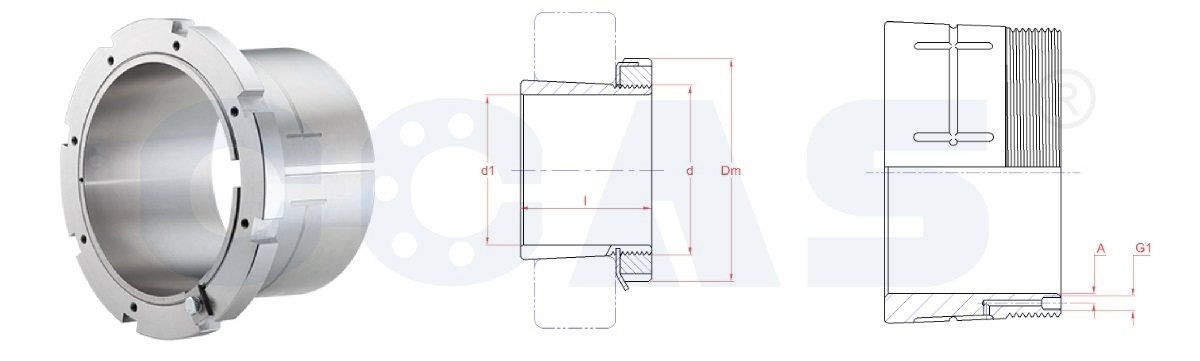

Drawing and Technical Data Sheet of OHA 32 Series Hydraulic Adapter Sleeves
| Adapter Sleeves No. | d1 | d | G | l | Dm | G1 | Lock Nuts + Locking Device | Bearings |
| mm | mm | mm | mm | |||||
| OHA 3260H | 10 15/16" | 300 | Tr 300x4 | 240 | 380 | M6x1 | HM 3160 + MS 3160 | 22360K, 23260K |
| OHA 3268H | 12 7/16" | 340 | Tr 340x5 | 288 | 440 | M6x1 | HM 3168 + MS 3168-MS 3172 | 22368K, 23268K |
| OHA 3272H | 13 7/16" | 360 | Tr 360x5 | 299 | 460 | M4x0.7 | HM 3172 + MS 3168-MS 3172 | 22372K, 23272K |
| OHA 3276H | 13 15/16" | 380 | Tr 380x5 | 310 | 490 | M6x1 | HM 3176 + MS 3176 | 22376K, 23276K |
