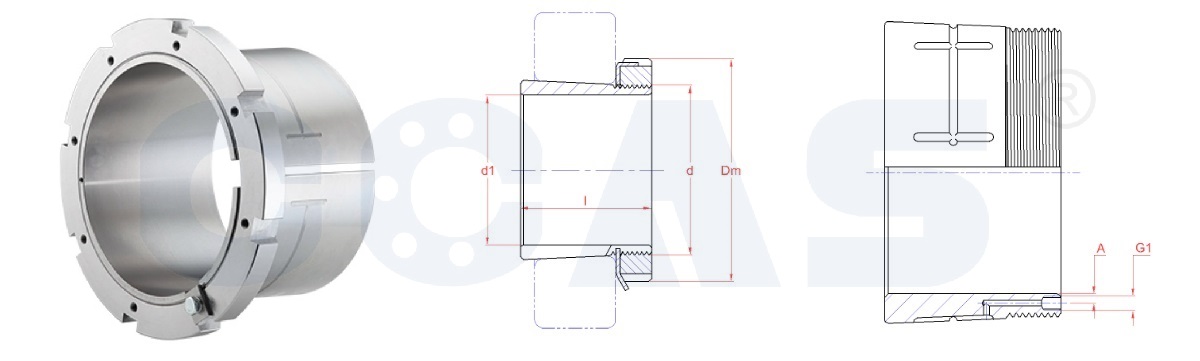

Drawing and Technical Parameters of OHS 23 Series Hydraulic Adapter Sleeves

Adapter Sleeves No.d1dGlDmG1Lock Nuts + Lock WasherBearings
mmmmmmmm
OHS 2334H5 7/8"170M 170x3154220M6x1KM 34 + MB 3422334K, 23234KOHS 2336H6 3/8"180M 180x3161230M6x1KM 36 + MB 3622336K, 23236K, C 3236KOHS 2338H6 5/8"190M 190x3169240M6x1KM 38 + MB 3822338K, 23238KOHS 2340H7 1/8"200M 200x3176250M6x1KM 40 + MB 4022340K, 23240K
