Product Name: OHE 23 Series Hydraulic Adapter Sleeves

Product Details

Drawing and Technical Parameters of OHE 23 Series Hydraulic Adapter Sleeves

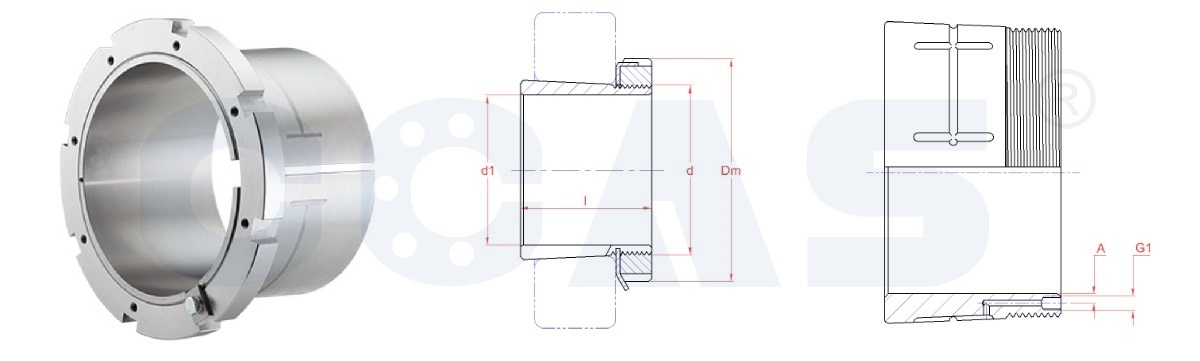

Drawing of OHE 23 Series & OHE 30 Series Hydraulic Adapter Sleeves



Adapter Sleeves No.d1dGlDmG1Lock Nuts + Locking DeviceBearings

mmmmmmmm
OHE 2332H5 1/2"160M 160x3147210M6x1KM 32 + MB 3222332K, 23232K
OHE 2332HL5 1/2"160M 160x3147190M6x1KML 32 + MBL 32C 3232K
OHE 2334H6"170M 170x3154220M4x0.7KM 34 + MB 3422334K, 23234K
OHE 2336H6 1/2"180M 180x3161230M4x0.7KM 36 + MB 3622336K, 23236K, C 3236K
OHE 2338H6 3/4"190M 190x3169240M6x1KM 38 + MB 3822338K, 23238K
OHE 2340H7"200M 200x3176250M6x1KM 40 + MB 4022340K, 23240K
OHE 2344H8"220Tr 220x4186280M4x0.7HM 3144 + MS 3144-MS 314822344K, 23244K
OHE 2344XH8"220Tr 220x4186280M4x0.7HM 44T + MB 4422344K, 23244K
OHE 2348H8 1/2"240Tr 240x4199300M6x1HM 3148 + MS 3144-MS 314822348K, 23248K
OHE 2348XH8 1/2"240Tr 240x4199300M6x1HM 48T + MB 4822348K, 23248K
OHE 2352H9 1/2"260Tr 260x4211330M4x0.7HM 3152 + MS 3152-MS 315622352K, 23252K
OHE 2352XH9 1/2"260Tr 260x4211330M4x0.7HM 52T + MB 5222352K, 23252K
OHE 2356H10"280Tr 280x4224350M6x1HM 3156 + MS 3152-MS 315622356K, 23256K
OHE 2356XH10"280Tr 280x4224350M6x1HM 56T + MB 5622356K, 23256K
