Product Name: AH 31 (AHX 31) Series Withdrawal Sleeves
Product Details

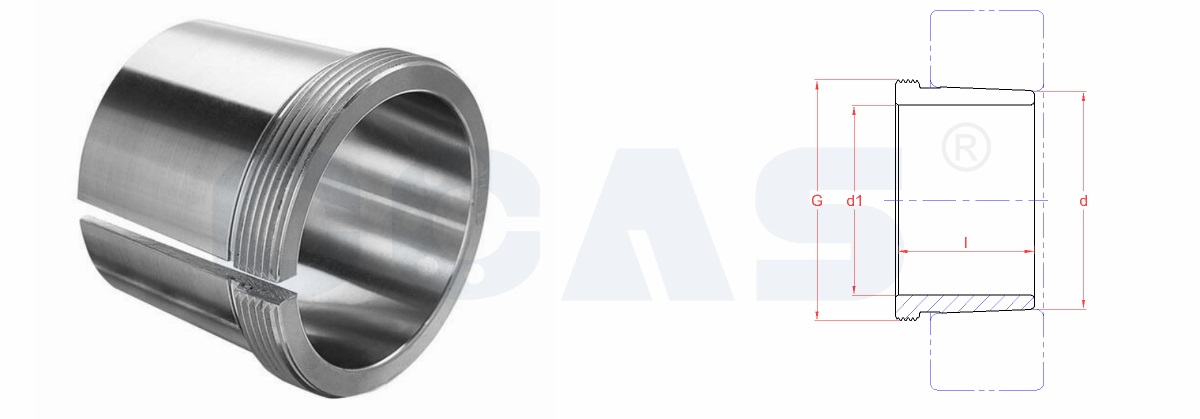

Drawing and Technical Parameters of AH 31 (AHX 31) Series Withdrawal Sleeves
| Withdrawal Sleeves No. | d1 | d | l | G | Bearings |
| mm | mm | mm | |||
| AHX 3120 | 95 | 100 | 64 | M 110x2 | 23120K, C 3120KV |
| AHX 3122 | 105 | 110 | 68 | M 120x2 | 22222K, 23122K, C 2222K, C 3022K |
| AHX 3124 | 115 | 120 | 75 | M 130x2 | 22224K, 23124K, C 2224K |
| AHX 3126 | 125 | 130 | 78 | M 140x2 | 22226K, 23126K, C 2226K |
| AHX 3128 | 135 | 140 | 83 | M 150x2 | 22228K, 23128K, C 2228K |
| AHX 3130 | 145 | 150 | 96 | M 165x3 | 22230K, 23130K |
| AH 3132 | 150 | 160 | 103 | M 180x3 | 22232K, 23132K |
| AH 3134 | 160 | 170 | 104 | M 190x3 | 22234K, 23134K |
| AH 3136 | 170 | 180 | 116 | M 200x3 | 23136K |
| AH 3138 | 180 | 190 | 125 | Tr 210x4 | 23138K |
| AH 3140 | 190 | 200 | 134 | Tr 220x4 | 23140K, C 3140K |
| AH 3144 | 200 | 220 | 145 | Tr 240x4 | 23144K, C 3144K |
| AH 3148 | 220 | 240 | 154 | Tr 260x4 | 23148K, C 3148K |
| AH 3152 | 240 | 260 | 172 | Tr 290x4 | 23152K |
| AH 3156 | 260 | 280 | 175 | Tr 310x5 | 23156K |
| AH 3160 | 280 | 300 | 192 | Tr 330x5 | 23160K |
| AH 3164 | 300 | 320 | 209 | Tr 350x5 | 23164K |
| AH 3168 | 320 | 340 | 225 | Tr 370x5 | 23168K |
| AH 3172 | 340 | 360 | 229 | Tr 400x5 | 23172K |
| AH 3176 | 360 | 380 | 232 | Tr 420x5 | 23176K |
| AH 3180 | 380 | 400 | 240 | Tr 440x5 | 23180K |
| AH 3184 | 400 | 420 | 266 | Tr 460x5 | 23184K |
| AH 3184 G | 400 | 420 | 266 | Tr 440x5 | 23184K, C 3184K |
| AHX 3188 | 420 | 440 | 270 | Tr 480x5 | 23188K |
| AHX 3192 | 440 | 460 | 285 | Tr 510x6 | 23192K |
| AHX 3196 | 460 | 480 | 295 | Tr 530x6 | 23196K |
| AHX 31/500 | 480 | 500 | 313 | Tr 550x6 | 231/500K |
| AH 31/530 | 500 | 530 | 325 | Tr 560x6 | 222/530K, 231/530K, C 31/530K |
| AH 31/560 | 530 | 560 | 335 | Tr 590x6 | 222/560K, 231/560K, C 31/560K |
| AH 31/600 | 560 | 600 | 355 | Tr 630x6 | 222/600K, 231/600K, C 31/600K |
| AH 31/630 | 600 | 630 | 375 | Tr 670x6 | 222/630K, 231/630K, C 31/630K |
| AH 31/670 | 630 | 670 | 395 | Tr 710x7 | 222/670K, 231/670K |
| AHX 31/670 | 630 | 670 | 395 | Tr 710x7 | C 31/670K |
| AH 31/710 | 670 | 710 | 405 | Tr 750x7 | 222/710K, 231/710K |
| AHX 31/710 | 670 | 710 | 405 | Tr 750x7 | C 31/710K |
| AH 31/750 | 710 | 750 | 425 | Tr 800x7 | 222/750K, 231/750K, C 31/750K |
| AH 31/800 | 750 | 800 | 438 | Tr 850x7 | 222/800K, 231/800K, C 31/800K |
| AH 31/850 | 800 | 850 | 462 | Tr 900x7 | 222/850K, 231/850K, C 31/850K |
| AH 31/900 | 850 | 900 | 475 | Tr 950x8 | 222/900K, 231/900K |
| AH 31/950 | 900 | 950 | 500 | Tr 1000x8 | 222/950K, 231/950K |
| AH 31/1000 | 950 | 1000 | 525 | Tr 1060x8 | 222/1000K, 231/1000K, C 31/1000K |
| AH 31/1060 | 1000 | 1060 | 540 | Tr 1120x8 | 222/1060K, 231/1060K |
