Product Name: AH 22 Series Withdrawal Sleeves
Product Details

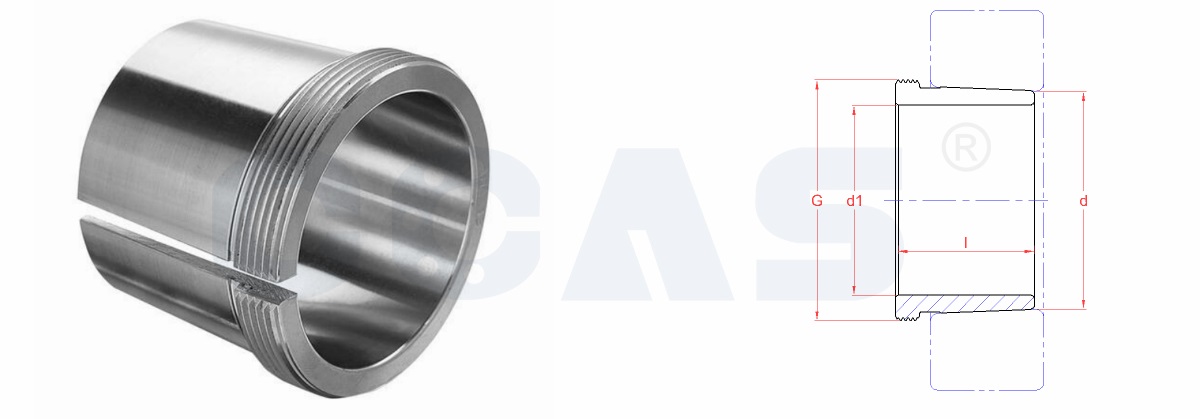

Drawing and Technical Data Sheet of AH 22 Series Withdrawal Sleeves
| Withdrawal Sleeves No. | d1 | d | l | G | Bearings |
| mm | mm | mm | |||
| AH 2236 | 170 | 180 | 105 | M 200x3 | 22236K |
| AH 2238 | 180 | 190 | 112 | Tr 210x4 | 22238K |
| AH 2240 | 190 | 200 | 118 | Tr 220x4 | 22240K |
| AH 2244 | 200 | 220 | 130 | Tr 240x4 | 22244K, C 2244K |
| AH 2248 | 220 | 240 | 144 | Tr 260x4 | 22248K |
| AH 2252 | 240 | 260 | 155 | Tr 290x4 | 22252K |
| AH 2256 | 260 | 280 | 155 | Tr 310x5 | 22256K |
| AH 2260 | 280 | 300 | 170 | Tr 330x5 | 22260K |
| AH 2264 | 300 | 320 | 180 | Tr 350x5 | 22264K |
