Product Name: AOH 22 & AOH 23 Series Hydraulic Withdrawal Sleeves
Product Details

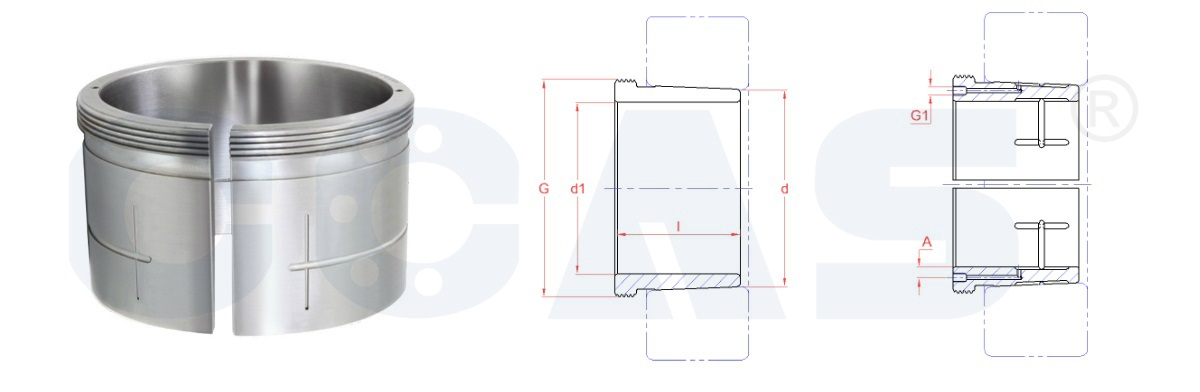

Drawing and Technical Data Sheet of AOH 22 and AOH 23 Series Hydraulic Withdrawal Sleeves
| Withdrawal Sleeves No. | d1 | d | l | G | G1 | Bearings |
| mm | mm | mm | ||||
| AOH 2236 | 170 | 180 | 105 | M 200x3 | M6x1 | 22236K |
| AOH 2238 | 180 | 190 | 112 | Tr 210x4 | M6x1 | 22238K |
| AOH 2240 | 190 | 200 | 118 | Tr 220x4 | M6x1 | 22240K |
| AOH 2244 | 200 | 220 | 130 | Tr 240x4 | G1/8"x28FPP | 22244K, C 2244K |
| AOH 2248 | 220 | 240 | 144 | Tr 260x4 | G1/8"x28FPP | 22248K |
| AOH 2252 | 240 | 260 | 155 | Tr 290x4 | G1/8"x28FPP | 22252K |
| AOH 2256 | 260 | 280 | 155 | Tr 310x5 | G1/8"x28FPP | 22256K |
| AOH 2260 | 280 | 300 | 170 | Tr 330x5 | G1/8"x28FPP | 22260K |
| AOH 2264 | 300 | 320 | 180 | Tr 350x5 | G1/8"x28FPP | 22264K |
| AOH 2332 | 150 | 160 | 140 | M 180x3 | M6x1 | 22332K |
| AOH 2334 | 160 | 170 | 146 | M 190x3 | M6x1 | 22334K |
| AOH 2336 | 170 | 180 | 154 | M 200x3 | M6x1 | 22336K |
| AOH 2338 | 180 | 190 | 160 | Tr 210x4 | M6x1 | 22338K |
| AOH 2340 | 190 | 200 | 170 | Tr 220x4 | M6x1 | 22340K |
| AOH 2344 | 200 | 220 | 181 | Tr 240x4 | G1/8"x28FPP | 22344K, 23244K |
| AOH 2348 | 220 | 240 | 189 | Tr 260x4 | G1/8"x28FPP | 22348K, 23248K |
| AOH 2352 | 240 | 260 | 205 | Tr 290x4 | G1/8"x28FPP | 22352K, 23252K |
| AOH 2356 | 260 | 280 | 212 | Tr 310x5 | G1/8"x28FPP | 22356K, 23256K |
