Product Name: KMT Series Precision Lock Nuts

Product Details

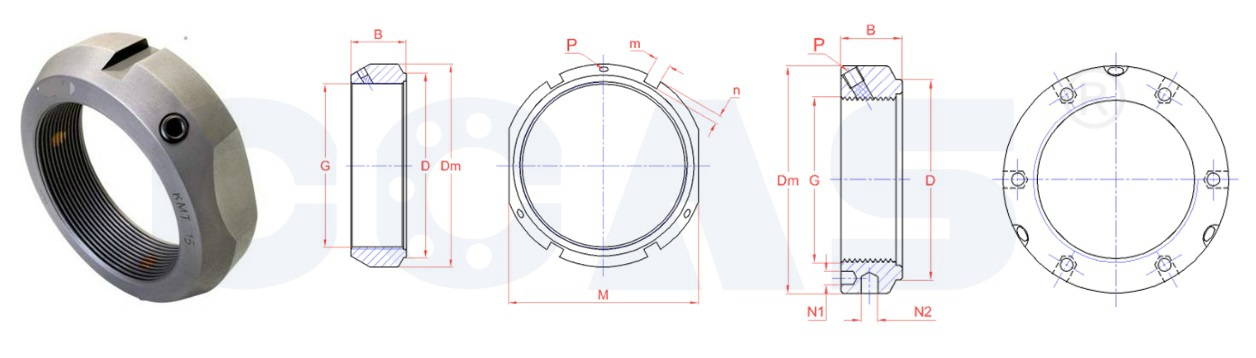

Drawing and Technical Data Sheet of KMT series Precision Lock Nuts

KMT Precision Lock Nuts

Precision Nuts No.	G	Dm	D	B	m	n	M	N1	N2	P	Nm
Precision Nuts No.	mm	mm	mm	mm	mm	mm	mm	mm	mm
KMT 0	M 10x0.75	28	23	14	4	2	24			M 5	4.5
KMT 1	M 12x1	30	25	14	4	2	27			M 5	4.5
KMT 2	M 15x1	33	28	16	4	2	30			M 5	4.5
KMT 3	M 17x1	37	33	18	5	2	34			M 6	8
KMT 4	M 20x1	40	35	18	5	2	36			M 6	8
KMT 5	M 25x1.5	44	39	20	5	2	41			M 6	8
KMT 6	M 30x1.5	49	44	20	5	2	46			M 6	8
KMT 7	M 35x1.5	54	49	22	5	2	50			M 6	8
KMT 8	M 40x1.5	65	59	22	6	2.5	60			M 6	8
KMT 9	M 45x1.5	70	64	22	6	2.5	65			M 6	8
KMT 10	M 50x1.5	75	68	25	7	3	70			M 6	8
KMT 11	M 55x2	85	78	25	7	3	80			M 8	18
KMT 12	M 60x2	90	82	26	8	3.5	85			M 8	18
KMT 13	M 65x2	95	87	28	8	3.5	90			M 8	18
KMT 14	M 70x2	100	92	28	8	3.5	95			M 8	18
KMT 15	M 75x2	105	97	28	8	3.5	100			M 8	18
KMT 16	M 80x2	110	100	32	8	3.5				M 8	18
KMT 17	M 85x2	120	110	32	10	4				M 10	35
KMT 18	M 90x2	125	115	32	10	4				M 10	35
KMT 19	M 95x2	130	120	32	10	4				M 10	35
KMT 20	M 100x2	135	125	32	10	4				M 10	35
KMT 22	M 110x2	145	134	32	10	4				M 10	35
KMT 24	M 120x2	155	144	32	10	4				M 10	35
KMT 26	M 130x2	165	154	32	12	5				M 10	35
KMT 28	M 140x2	175	164	32	14	6				M 10	35
KMT 30	M 150x2	185	174	32	14	6				M 10	35
KMT 32	M 160x3	195	184	32	14	6				M 10	35
KMT 34	M 170x3	205	194	32	14	6				M 10	35
KMT 36	M 180x3	215	204	32	16	7				M 10	35
KMT 38	M 190x3	225	214	32	16	7				M 10	35
KMT 40	M 200x3	235	224	32	18	8				M 10	35
KMT 44	Tr 220x4	265	254	36	20	10				M 10	35
KMT 48	Tr 240x4	290	279	38	20	10				M 12	60
KMT 52	Tr 260x4	310	299	38	20	10				M 12	60
KMT 56	Tr 280x4	330	319	40	24	12				M 12	60
KMT 60	Tr 300x4	360	349	42	24	12				M 12	60
KMT 64	Tr 320x5	390	379	45	24	12				M 12	60
KMT 68	Tr 340x5	410	399	48	24	12				M 12	60
