Product Name: AW/MB and AWL/MBL Series Adapter Sleeve Locking Washers
Product Details

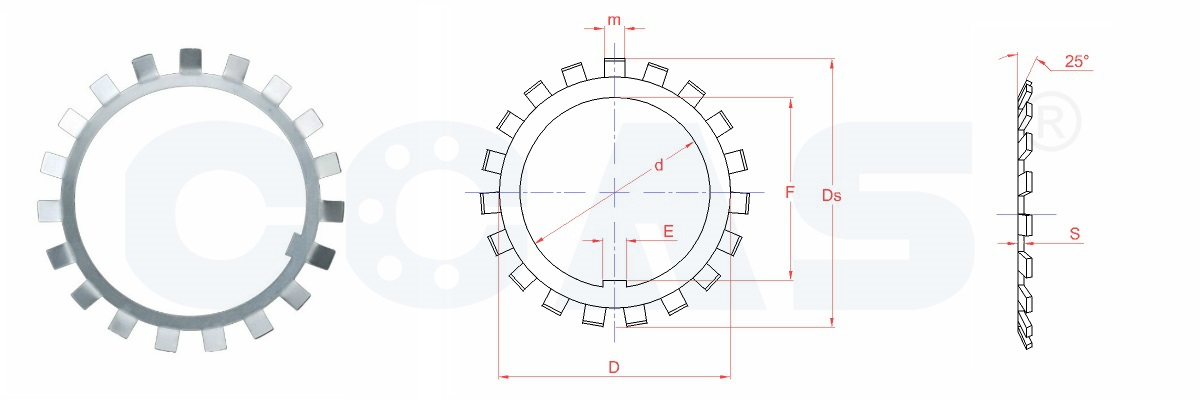

Drawing and Technical Data Sheet of Adapter Sleeve Lock Washers
| Lock Washer No. | d | Ds | D | S | E | F | m |
| mm | mm | mm | mm | mm | mm | mm | |
| MB 0 | 10 | 21 | 13.5 | 1 | 3 | 8.5 | 3 |
| MB 1 | 12 | 25 | 17 | 1 | 3 | 10.5 | 3 |
| MB 2 | 15 | 28 | 21 | 1 | 4 | 13.5 | 4 |
| MB 3 | 17 | 32 | 24 | 1 | 4 | 15.5 | 4 |
| MB 4 | 20 | 36 | 26 | 1 | 4 | 18.5 | 4 |
| MB 5 | 25 | 42 | 32 | 1.2 | 5 | 23 | 5 |
| MB 6 | 30 | 49 | 38 | 1.2 | 5 | 27.5 | 5 |
| MB 7 | 35 | 57 | 44 | 1.2 | 6 | 32.5 | 5 |
| MB 8 | 40 | 62 | 50 | 1.2 | 6 | 37.5 | 6 |
| MB 9 | 45 | 69 | 56 | 1.2 | 6 | 42.5 | 6 |
| MB 10 | 50 | 74 | 61 | 1.2 | 6 | 47.5 | 6 |
| MB 11 | 55 | 81 | 67 | 1.5 | 8 | 52.5 | 7 |
| MB 12 | 60 | 86 | 73 | 1.5 | 8 | 57.5 | 7 |
| MB 13 | 65 | 92 | 79 | 1.5 | 8 | 62.5 | 7 |
| MB 14 | 70 | 98 | 85 | 1.5 | 8 | 66.5 | 8 |
| MB 15 | 75 | 104 | 90 | 1.5 | 8 | 71.5 | 8 |
| MB 16 | 80 | 112 | 95 | 1.75 | 10 | 76.5 | 8 |
| MB 17 | 85 | 119 | 102 | 1.75 | 10 | 81.5 | 8 |
| MB 18 | 90 | 126 | 108 | 1.75 | 10 | 86.5 | 10 |
| MB 19 | 95 | 133 | 113 | 1.75 | 10 | 91.5 | 10 |
| MB 20 | 100 | 142 | 120 | 1.75 | 12 | 96.5 | 10 |
| MB 21 | 105 | 145 | 126 | 1.75 | 12 | 100.5 | 12 |
| MB 22 | 110 | 154 | 133 | 1.75 | 12 | 105.5 | 12 |
| MB 23 | 115 | 159 | 137 | 2 | 12 | 110.5 | 12 |
| MB 24 | 120 | 164 | 138 | 2 | 14 | 115 | 12 |
| MB 25 | 125 | 170 | 148 | 2 | 14 | 120 | 12 |
| MB 26 | 130 | 175 | 149 | 2 | 14 | 125 | 12 |
| MB 27 | 135 | 191 | 160 | 2 | 14 | 130 | 14 |
| MB 28 | 140 | 192 | 160 | 2 | 16 | 135 | 14 |
| MB 29 | 145 | 202 | 171 | 2 | 16 | 140 | 14 |
| MB 30 | 150 | 202 | 171 | 2 | 16 | 145 | 14 |
| MB 31 | 155 | 216 | 182 | 2.5 | 16 | 147.5 | 16 |
| MB 32 | 160 | 217 | 182 | 2.5 | 18 | 154 | 16 |
| MB 33 | 165 | 227 | 193 | 2.5 | 18 | 157.5 | 16 |
| MB 34 | 170 | 227 | 193 | 2.5 | 18 | 164 | 16 |
| MB 36 | 180 | 242 | 203 | 2.5 | 20 | 174 | 18 |
| MB 38 | 190 | 252 | 214 | 2.5 | 20 | 184 | 18 |
| MB 40 | 200 | 262 | 226 | 2.5 | 20 | 194 | 18 |
| MB 44 | 220 | 292 | 250 | 3 | 24 | 213 | 20 |
| MB 48 | 240 | 312 | 270 | 3 | 24 | 233 | 20 |
| MB 52 | 260 | 342 | 300 | 3 | 28 | 253 | 24 |
| MB 56 | 280 | 362 | 320 | 3 | 28 | 273 | 24 |
| MBL 24 | 120 | 148 | 135 | 2 | 14 | 115 | 12 |
| MBL 26 | 130 | 158 | 145 | 2 | 14 | 125 | 12 |
| MBL 28 | 140 | 170 | 155 | 2 | 16 | 135 | 12 |
| MBL 30 | 150 | 186 | 170 | 2 | 16 | 145 | 14 |
| MBL 32 | 160 | 197 | 180 | 2.5 | 18 | 154 | 14 |
| MBL 34 | 170 | 209 | 190 | 2.5 | 18 | 164 | 16 |
| MBL 36 | 180 | 215 | 200 | 2.5 | 20 | 174 | 16 |
| MBL 38 | 190 | 228 | 210 | 2.5 | 20 | 184 | 16 |
| MBL 40 | 200 | 248 | 222 | 2.5 | 20 | 194 | 18 |
