Product Name: SN 600 Series (SSN 600 Series) Split Plummer Block Housings
Product Details

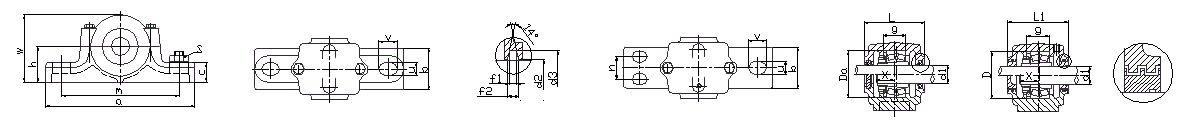

Drawing and Technical Data Sheet of SN 600 (SSN 600) Series Split Plummer Block Housings
| Bearing Housing No. | Shaft Diameter | Housing Wt (kg) | Bearing No. | Adapter Sleeve | Locating Ring | ||||
| mm | in | (kg) | Number | QTY | |||||
| SN605 | 20 | 3/4 | 2.1 | 1305K | H305 | HE305 | SR62x8.5 | 2 | |
| 2305K | H2305 | HE2305 | SR62x10 | 1 | |||||
| SN606 | 25 | 1 | 3.1 | 1306K | H306 | HE306 | SR72x9 | 2 | |
| 2306K | H2306 | HE2306 | SR72x10 | 1 | |||||
| SN607 | 30 | 1-1/8 | 3.73 | 1307K | H307 | HE307 | SR80x10 | 2 | |
| 2307K | H2307 | HE2307 | SR80x10 | 1 | |||||
| SN608 | 35 | 1-1/4 | 4.6 | 1308K | 21308K | H308 | HE308 | SR90x10 | 2 |
| 2308K | 22308K | H2308 | HE2308 | SR90x10 | 1 | ||||
| SN609 | 40 | 1-1/2 | 5.7 | 1309K | 21309K | H309 | HE309 | SR100x10.5 | 2 |
| SSN609 | 8 | 2309K | 22309K | H2309 | HE2309 | SR100x10 | 1 | ||
| SN610 | 45 | 1-3/4 | 6.5 | 1310K | 21310K | H310 | HE310 | SR110x11.5 | 2 |
| SSN610 | 9 | 2310K | 22310K | H2310 | HE2310 | SR110x10 | 1 | ||
| SN611 | 50 | 2 | 6.8 | 1311K | 21311K | H311 | HE311 | SR120x12 | 2 |
| SSN611 | 9.5 | 2311K | 22311K | H2311 | HE2311 | SR120x10 | 1 | ||
| SN612 | 55 | 2-1/8 | 8.6 | 1312K | 21312K | H312 | HE312 | SR130x12.5 | 2 |
| SSN612 | 11 | 2312K | 22312K | H2312 | HE2312 | SR130x10 | 1 | ||
| SN613 | 60 | 2-1/4 | 11.1 | 1313K | 21313K | H313 | HE313 | SR140x12.5 | 2 |
| SSN613 | 14 | 2313K | 22313K | H2313 | HE2313 | SR140x10 | 1 | ||
| SN615 | 65 | 2-1/2 | 15.2 | 1315K | 21315K | H315 | HE315 | SR160x14 | 2 |
| SSN615 | 19.1 | 2315K | 22315K | H2315 | HE2315 | SR160x10 | 1 | ||
| SN616 | 70 | 2-3/4 | 17.8 | 1316K | 21316K | H316 | HE316 | SR170x14.5 | 2 |
| SSN616 | 21.2 | 2316K | 22316K | H2316 | HE2316 | SR170x10 | 1 | ||
| SN617 | 75 | 3 | 19.5 | 1317K | 21317K | H317 | HE317 | SR180x14.5 | 2 |
| SSN617 | 25 | 2317K | 22317K | H2317 | HE2317 | SR180x10 | 1 | ||
| SN618 | 80 | 3-1/4 | 25.3 | 1318K | 22318K | H318 | HE318 | SR190x15.5 | 2 |
| SSN618 | 29.3 | 2318K | H2318 | HE2318 | SR190x10 | 1 | |||
| SN619 | 85 | 27 | 1319K | 22319K | H319 | HE319 | SR200x16 | 2 | |
| SSN619 | 32.3 | 2319K | H2319 | HE2319 | SR200x10 | 1 | |||
| SN620 | 90 | 3-1/2 | 32 | 1320K | 22320K | H320 | HE320 | SR215x18 | 2 |
| SSN620 | 36 | 2320K | H2320 | HE2320 | SR215x10 | 1 | |||
| SN622 | 100 | 4 | 43.4 | 1322K | 22322K | H322 | HE322 | SR240x20 | 2 |
| SSN622 | 51 | 2322K | H2322 | HE2322 | SR240x10 | 1 | |||
| SN624 | 110 | 4-1/4 | 54.6 | 22324K | H2324 | HE2324 | SR260x10 | 2 | |
| SSN624 | 64 | 1 | |||||||
| SN626 | 115 | 4-1/2 | 67.2 | 22326K | H2326 | HE2326 | SR280x10 | 2 | |
| SSN626 | 78 | 1 | |||||||
| SN628 | 125 | 5 | 92.6 | 22328K | H2328 | HE2328 | SR300x10 | 2 | |
| SSN628 | 105 | 1 | |||||||
| SN630 | 135 | 5-1/4 | 101.5 | 22330K | H2330 | HE2330 | SR320x10 | 2 | |
| SSN630 | 113 | 1 | |||||||
| SN632 | 140 | 5-1/2 | 122.3 | 22332K | H2332 | HE2332 | SR340x10 | 2 | |
| SSN632 | 135.6 | 1 | |||||||
