Product Name: SD 3100 Series Plummer Block Housings
Product Details

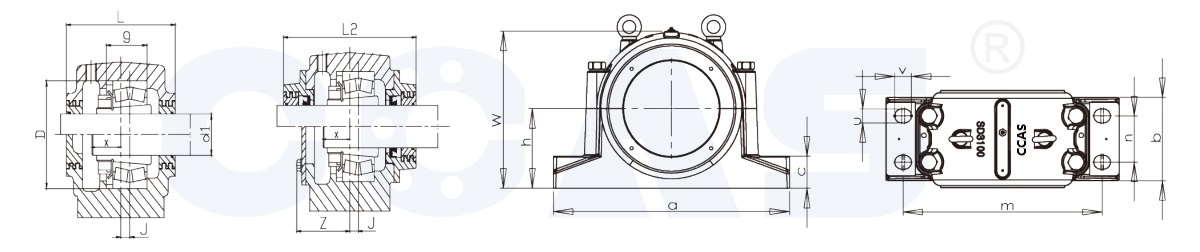

Drawing and Technical Data Sheet of SD 3100 Series Plummer Block Housings
| Bearing Housing No. | Shaft Diameter(mm) | Bearing Housing Wt(kg) | Bearing No | Adapter Sleeve | Locating Ring | ||
| Number | QTY | ||||||
| SD3134 | 150 | 70 | 23134K | H3134 | HE3134 | SR2S0X10 | 2 |
| SD3136 | 160 | 79 | 23136K | H3136 | HE3136 | SR300X10 | 2 |
| SD3138 | 170 | 100 | 23138K | H3130 | HE3138 | SR320X10 | 2 |
| SD3140 | 180 | 130 | 23140K | H3140 | HE3140 | SR340x10 | 2 |
| SD3144 | 200 | 146 | 23144K | H3144 | HE3144 | SR370x10 | 2 |
| SD3148 | 220 | 190 | 23148K | H3148 | HE3148 | SR400X10 | 2 |
| SD3152 | 240 | 230 | 23152K | H3152 | HE3152 | SR440X10 | 2 |
| SD3156 | 260 | 260 | 23156K | H3156 | HE3156 | SR460X10 | 2 |
| SD3160 | 200 | 320 | 23160K | H3160 | HE3160 | SR500X10 | 2 |
| SD3164 | 300 | 350 | 23164K | H3164 | HE3164 | SR540X10 | 2 |
| SD3168 | 320 | 550 | 23168K | H3168 | HE3168 | SR580x10 | 2 |
| SD3172 | 340 | 560 | 23172K | H3172 | HE3172 | SR600X10 | 2 |
| SD3176 | 360 | 780 | 23176K | H3176 | HE3176 | SR620X10 | 2 |
| SD3180 | 380 | 885 | 23180K | H3180 | HE3180 | SR650X10 | 2 |
