Product Name: Z21 Series Locking Assemblies-Keyless Shaft Power Lock-Shaft Clamping Elements

Product Details

Product Name: Locking Assemblies, Keyless Locking Device, Shaft Clamping Elements, Shaft Power Lock, Cone Clamping Elements

Series: Z21

Material: #45 Carbon Steel

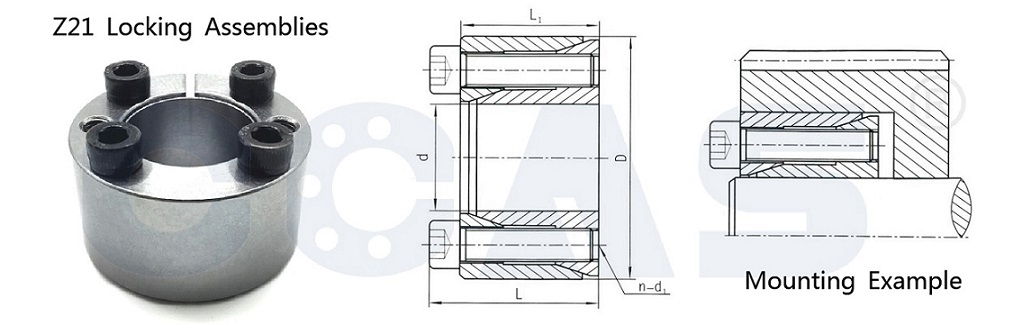

Drawing and Technical Data Sheet of Z21 series Shaft Locking Assemblies

Z21 Series Locking Assemblies - Shaft Clamping Elements - Shaft Power Lock
Dimension				Axial Force	Torque	Pressure on shaft	Pressure on hub	Screw
								QTY	Specs	Tightening Torque
										Tightening Torque
d	D	L1	L	Ft	Mt	P	P1			Ts
mm	mm	mm	mm	KN	Nm	N/mm2	N/mm2			Nm
10	20	12.5	13	3.8	19	89	45	4	M2.5X12	1.2
11	22	12.5	13	3.8	21	81	41	4	M2.5X12	1.2
12	22	12.5	13	3.8	23	75	41	4	M2.5X12	1.2
14	26	16.5	17	5.5	39	71	38	4	M3X16	2.1
15	28	16.5	17	5.5	42	66	35	4	M3X16	2.1
16	32	16.5	17	9.6	77	107	54	4	M4X16	4.9
17	35	20.5	21	9.6	82	81	40	4	M4X20	4.9
18	35	20.5	21	9.6	87	77	40	4	M4X20	4.9
19	35	20.5	21	9.6	91	73	40	4	M4X20	4.9
20	38	20.5	21	15.7	157	113	60	4	M5X20	10
22	40	20.5	21	15.7	173	103	57	4	M5X20	10
24	47	25	26	22.3	268	110	56	4	M6X24	17
25	47	25	26	22.3	279	105	56	4	M6X24	17
28	50	25	26	33.5	468	141	79	6	M6X24	17
30	55	25	26	33.5	502	132	72	6	M6X24	17
32	55	25	26	33.5	535	123	72	6	M6X24	17
35	60	30	31	44.6	781	125	73	8	M6X28	17
38	65	30	31	44.6	848	115	67	8	M6X28	17
40	65	30	31	44.6	892	110	67	8	M6X28	17
42	75	35	36	60.6	1272	122	68	6	M8X34	41
45	75	35	36	60.6	1363	113	68	6	M8X34	41
48	80	35	36	80.8	1938	142	85	8	M8X34	41
50	80	35	36	80.8	2019	136	85	8	M8X34	41
