Product Name: Z17A Series Locking Assemblies-Keyless Shaft Power Lock-Shaft Clamping Elements

Product Details

Product Name: Locking Assemblies, Keyless Locking Device, Shaft Clamping Elements, Shaft Power Lock, Cone Clamping Elements

Series: Z17A

Material: #45 Carbon Steel

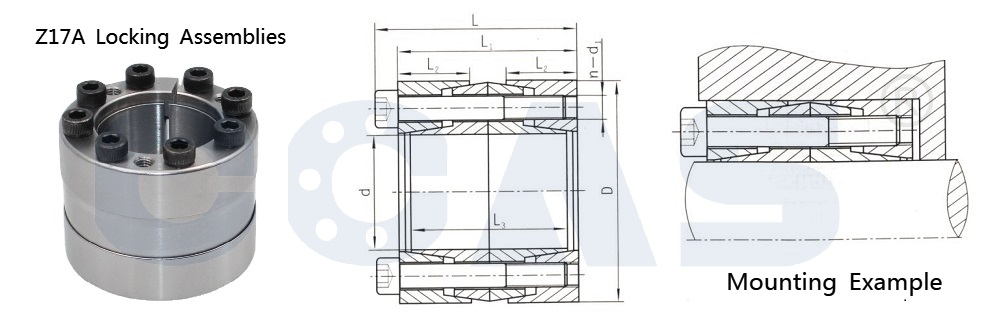

Drawing and Technical Data Sheet of Z17A series Shaft Locking Assemblies

Z17A Series Locking Assemblies - Shaft Clamping Elements - Shaft Power Lock
Dimensions						Rated Load		Screw			Pressure on shaft	Pressure on hub	Weight
d	D	L3	L2	L1	L	Torque	Axial Force	d1	n	MA	N/mm2	N/mm2	kg
d	D	L3	L2	L1	L	kN	kN．m	d1	n	N．m
30	55	40	17	46	52	0.9	60	M6	6	17	132	85	0.5
35	60	40	17	46	52	1.25	71	M6	7	17	135	93	0.6
40	65	40	17	46	52	1.5	75	M6	8	17	124	90	0.7
45	75	48	20	56	64	2.5	112	M8	6	41	136	98	1.1
50	80	48	20	56	64	3	120	M8	7	41	132	100	1.2
55	85	48	20	56	64	3.8	138	M8	8	41	138	108	1.3
60	90	48	20	56	64	4.3	143	M8	8	41	127	102	1.4
65	95	48	20	56	64	5.3	162	M8	9	41	132	108	1.5
70	110	58	24	68	78	7.6	219	M10	8	83	143	110	2.6
75	115	58	24	68	78	8.2	219	M10	8	83	134	105	2.8
80	120	58	24	68	78	8.7	219	M10	8	83	125	101	2.9
85	125	58	24	68	78	10.4	240	M10	9	83	133	109	3.1
90	130	58	24	68	78	12.3	274	M10	10	83	139	116	3.2
95	135	58	24	68	78	13	274	M10	10	83	132	112	3.3
100	145	66	28	76	88	15	301	M12	8	145	121	98	4.5
110	155	66	28	76	88	18.6	338	M12	9	145	123	103	4.9
120	165	66	28	76	88	22.5	376	M12	10	145	126	108	5.3
130	180	76	33	86	98	29.3	451	M12	12	145	121	101	7.3
140	190	76	33	86	98	31.5	451	M12	12	145	112	95	7.8
150	200	76	33	86	98	39.4	526	M12	14	145	122	106	8.2
160	210	76	33	86	98	45	563	M12	15	145	123	108	8.7
170	225	86	38	98	112	52.5	619	M14	12	230	112	96	11.6
180	235	86	38	98	112	64.9	722	M14	14	230	124	107	12.2
190	250	102	46	114	126	78.3	825	M14	16	230	113	95	16.7
200	260	102	46	114	126	92.7	928	M14	18	230	121	103	17.4
220	285	110	50	122	138	126	1146	M16	16	355	126	107	22.3
240	305	110	50	122	138	137.5	1146	M16	16	355	115	100	24.1
260	325	110	50	122	138	167.6	1289	M16	18	355	120	105	25.8
280	355	130	60	146	164	217	1552	M18	18	485	113	97	38.2
300	375	130	60	146	164	258.5	1724	M18	20	485	117	102	40.6
320	405	154	72	170	190	357.8	2236	M20	20	690	120	102	58.6
340	425	154	72	170	190	380	2236	M20	20	690	113	97	61.8
360	455	178	84	198	220	501	2784	M22	20	930	115	97	85
380	475	178	84	198	220	555	2923	M22	21	930	115	97	87.2
400	495	178	84	198	220	584	2923	M22	21	930	109	93	93.4
420	515	178	84	198	220	657	3132	M22	24	930	111	96	97.5
440	545	202	96	226	250	795	3617	M24	24	1200	108	92	128.9
460	565	202	96	226	250	831	3617	M24	24	1200	103	88	134.1
480	585	202	96	226	250	868	3617	M24	24	1200	99	85	139.3
500	605	202	96	226	250	985	3940	M24	28	1200	104	91	144.5
520	630	202	96	226	250	1024	3940	M24	28	1200	100	88	157.6
540	650	202	96	226	250	1063	3940	M24	28	1200	96	84	163.1
560	670	202	96	226	250	1181	4219	M24	30	1200	100	88	168.6
580	670	202	96	226	250	1224	4219	M24	30	1200	96	84	174
600	710	202	96	226	250	1266	4219	M24	30	1200	92	83	179.5
