Z16 Series Locking Assemblies-Keyless Shaft Power Lock-Shaft Clamping Elements-CCAS Bearing Co., Ltd

Product Details

Product Name: Z16 Series Locking Assemblies-Keyless Shaft Power Lock-Shaft Clamping Elements

Product Details

Product Name: Locking Assemblies, Keyless Locking Device, Shaft Clamping Elements, Shaft Power Lock, Cone Clamping Elements

Series: Z16

Material: #45 Carbon Steel

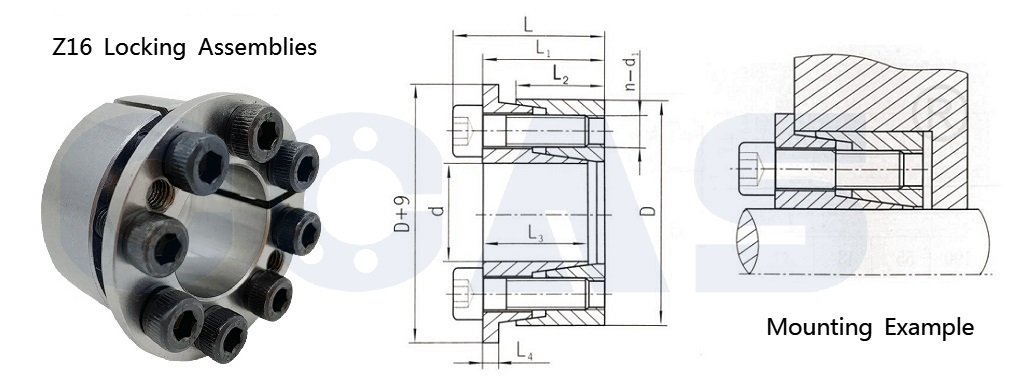

Drawing and Technical Data Sheet of Z16 series Shaft Locking Assemblies

Z16 Series Locking Assemblies - Shaft Clamping Elements - Shaft Power Lock
Dimensions							Rated Load		Screw			Pressure on shaft	Pressure on hub	Weight
d	D	L3	L2	L1	L	L4	Torque	Axial Force	d1	n	MA	N/mm2	N/mm2	kg
d	D	L3	L2	L1	L	L4	kN．m	kN	d1	n	N．m
20	47	20	17	23	29	3	0.28	28	M6	6	17	185	92	0.26
22	47	20	17	23	29	3	0.31	28	M6	6	17	168	92	0.25
24	50	20	17	23	29	3	0.34	28	M6	6	17	154	87	0.28
25	50	20	17	23	29	3	0.35	28	M6	6	17	148	87	0.3
28	55	20	17	23	29	3	0.52	37	M6	8	17	176	105	0.32
30	55	20	17	23	29	3	0.56	37	M6	8	17	164	105	0.31
35	60	20	17	23	29	3	0.74	42	M6	9	17	158	109	0.34
40	65	20	17	23	29	3	0.93	46	M6	10	17	154	111	0.38
45	75	24	20	28	36	4	1.56	69	M8	8	41	170	122	0.64
50	80	24	20	28	36	4	2	78	M8	9	41	172	129	0.69
55	85	24	20	28	36	4	2.4	86	M8	10	41	173	135	0.75
60	90	24	20	28	36	4	2.6	86	M8	10	41	159	127	0.8
65	95	24	20	28	36	4	3.4	104	M8	12	41	176	145	0.85
70	110	29	24	34	44	5	4.8	137	M10	10	83	179	138	1.56
75	115	29	24	34	44	5	5.15	137	M10	10	83	167	132	1.65
80	120	29	24	34	44	5	6.05	151	M10	11	83	172	139	1.73
85	125	29	24	34	44	5	7	164	M10	12	83	177	145	1.83
90	130	29	24	34	44	5	7.4	164	M10	12	83	167	140	1.91
95	135	29	24	34	44	5	7.8	164	M10	12	83	158	135	1.99
100	145	33	28	38	50	5	10.3	207	M12	11	145	166	135	2.68
110	155	33	28	38	50	5	11.4	207	M12	11	145	151	126	2.9
120	165	33	28	38	50	5	15.8	263	M12	14	145	176	151	3.1
130	180	38	33	43	55	5	19.5	301	M12	16	145	161	134	4.25
140	190	38	33	43	55	5	21	301	M12	16	145	150	127	4.5
150	200	38	33	43	55	5	25.4	338	M12	18	145	157	136	4.8
160	210	38	33	43	55	5	30	376	M12	20	145	164	144	5
170	225	43	38	49	63	5	35	412	M14	16	230	150	128	6.8
180	235	43	38	49	63	5	41.8	464	M14	18	230	159	138	7.1
190	250	51	46	57	71	5	51.4	541	M14	21	230	148	125	9.6
200	260	51	46	57	71	5	62	619	M14	24	230	161	137	10
220	285	55	50	61	77	5	78	714	M16	20	355	156	133	12.7
240	305	55	50	61	77	5	92	770	M16	21	355	154	137	13.8
260	325	55	50	61	77	5	112	860	M16	24	355	159	140	14.8
280	355	65	60	73	91	5	145	1034	M18	24	485	151	129	22.2
300	375	65	60	73	91	5	175	1164	M18	27	485	158	137	23.6
320	405	77	72	85	105	5	242	1510	M20	27	690	162	137	33.4
340	425	77	72	85	105	5	257	1510	M20	27	690	153	131	35.3
360	455	89	84	99	121	5	338	1880	M22	24	930	156	131	49
380	475	89	84	99	121	5	360	1890	M22	24	930	148	126	51.5
400	495	89	84	99	121	5	439	2193	M22	28	930	163	140	53.8
420	515	89	84	99	121	5	494	2350	M22	30	930	167	145	56.3
440	545	101	96	113	137	5	566	2572	M24	32	1200	153	130	74.8
460	565	101	96	113	137	5	592	2572	M24	32	1200	147	126	77.8
480	585	101	96	113	137	5	617	2572	M24	32	1200	141	121	81
500	605	101	96	113	137	5	723	2893	M24	36	1200	152	132	84
520	630	101	96	113	137	5	752	2893	M24	36	1200	146	128	91.6
540	650	101	96	113	137	5	781	2893	M24	36	1200	141	123	94.7
560	670	101	96	113	137	5	900	3215	M24	40	1200	151	133	97.9
580	690	101	96	113	137	5	932	3215	M24	40	1200	145	129	101
600	710	101	96	113	137	5	964	3215	M24	40	1200	141	125	104
